Under the leadership of Prof. Dr. D. Fasold, the faculty of'Electrical Engineering and Information Technology' of the Munich University of Applied Sciences (MUAS) established in 1990 a laboratory for Satellite Communications with the main emphasis on antenna design and testing.
In 1995, the small indoor far-field test range which was part of the lab was replaced by a Compensated Compact Test Range manufactured by EADS Astrium, now Airbus Defence & Space, which is described in more detail below.
This antenna test range is based on the principle of a 'Compensated Compact Range' CCR which was first manufactured and tested by MBB in 1988 [1].

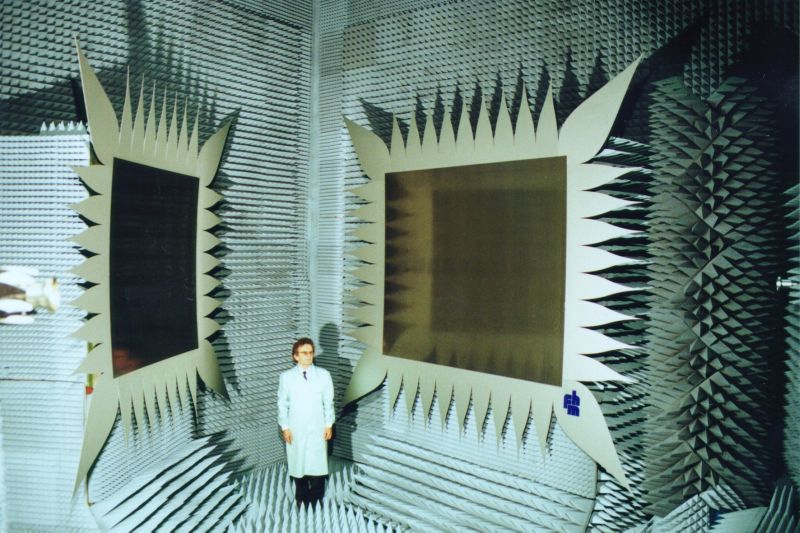

Figure 1: Compensated Compact Range Test Facility in the Laboratory for
Satellite Communications at the Munich University of Applied Sciences
From the two available models, the smaller Model CCR 20/17, as shown in Fig. 1, is installed in the laboratory. It provides a test zone of 1.3 x 1.3 x 1.5 m.
The CCR is based on the principle that a spherical wave coming from a source antenna is converted into a plane wave by means of two focusing, precision reflectors, arranged in optimized geometry in a closed anechoic chamber. Due to the concept of two compensated doubly curved reflectors, no test system introduced cross polarization occurs in the test zone for both linear and circular polarization. Improved amplitude and phase uniformity in the test zone is obtained
by the large equivalent focal length of 37 m of the two reflector system. The CCR is installed in a former lecture hall, now separated by an additional wall into an
- Anechoic chamber with the dimension of app. 7 x 6,3 x 5,8 m (L x W x H)
- Control and lab area

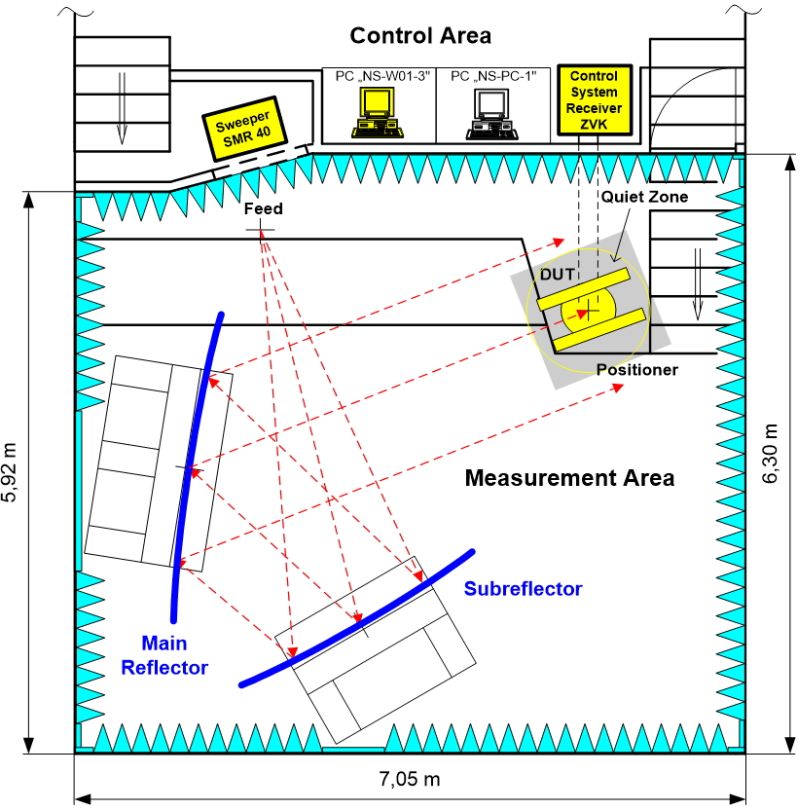

Figure 2: Top View of Compact Range Test Facility at the
Munich University of Applied Sciences
Fig. 2 shows the ground plane of the test facility. Due to the limitations of space, a very compact design was chosen, which resulted in a distance between the centre of the main reflector and the device under test (DUT) of app. 4.5 m. This figure is a little bit more than two times of the width of the main reflector. The reflector system is rotated by app. 23 degree, which significantly reduces the 'in phase' reflection of the plane wave at the back wall behind the DUT. This improves the measurement performance for bistatic and monostatic RCS measurements.
The complete test chamber is covered with pyramidal absorbers with a 10 to 30 cm height. The absorber layout is mainly determined by the operation frequency range of (2.0) 3.5 - 200 GHz and the main course of the rays. The absorbers at the partition wall are rotated by 45 % to reduce the reflection caused by the small incidence angles at that wall.
At the moment, high performance feeds for C-band (3.3–5.0 GHz / 5.4 - 8.2 GHz), X-band (8.2-12.4 GHz), M-band (10 - 15 GHz), Ku‑band (12 - 18.2 GHz), K‑band (18 - 26.5 GHz), Ka-band (26.5 - 40 GHz), V-Band (50 - 75 GHz) and W - Band (75 - 110 GHz) are available. The M-band feed has an integrated orthomode transducer for dual linear polarization measurements (H, V). By adding a 90 degree hybrid, also measurements with circular polarization can be carried out. The feed is mounted on a polarization positioner, which itself is mounted on a linear scanner. The linear scanner is computer controlled and allows the lateral movement of the feed. With this means, measurements with high angular accuracy of < 0.001 degree can be achieved without moving the DUT. The feed tower, constructed out of adjustable optical profile elements, is positioned in an opening in the partition wall and allows easy access to the connectors of the feed and the 40 GHz synthesizer, mounted behind the feed.
The Vector Network Analyzer ZVK from Rohde & Schwarz (ZVK 40) is used as receiver and covers the frequency range from 0.01 to 40 GHz. At the time antenna measurements can be performed up to 110 GHz by using of V- and W-band converters of R&S and additionally procured multipliers, mixers and amplifiers. The computer and control rack is connected to the feed tower via a cable conduit and to the positioner via a direct short cable duct to reduce losses for high frequency measurements.
The positioner itself allows a three axes movement (azimuth, polarization and one linear axis). Especially for standing wave analyses and the automatic determination of the phase centre of the DUT, the linear axis movement is applied. All drives are stepper motors and controlled by a microprocessor - control unit, which itself is connected to a PC via the IEEE 488-Bus. Figures 3 to 8 show four different test setups for specific antenna measurements in the CCR.
The movement of the DUT and positioner can be monitored in the control area by two HD video cameras. The control and measurement software is menu driven and allows free selection of all axes. Swept frequency measurements can be carried out. In the auto scan mode, data collection is automatically performed on a sphere around the DUT. Single scans (amplitude and phase), contour plots or 3D presentations can be selected. The control PC is connected to the LAN of the University and therefore data can be transferred via Internet or any other service provider to the customer.
The main specification and performance data of the facility are listed in Table 1.

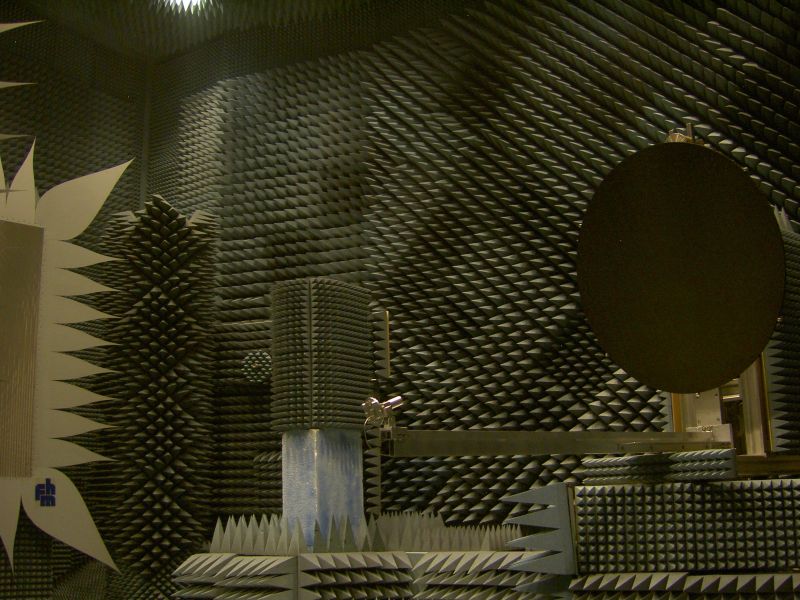

Figure 3: Measurement of Shaped Offset Reflector Antenna at 12 GHz Range
Figure 4: Test of Reflection Loss and Polarization Sensitivity of New Carbon Fibre Skins [19]
Figure 5: Measurement of 1.2m Offset Reflector Antenna at 40 GHz, ESA Project

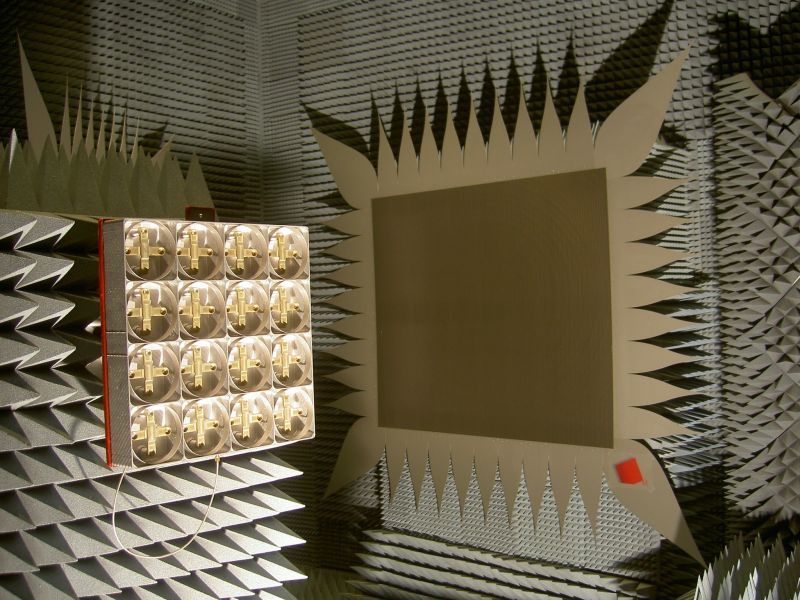

Figure 6: Measurement of Circularly Polarized S-Band Antenna LISA, BMBF Proj.
Figure 7: Test of DGR Offset Reflector Antenna at 20/30 GHz, ESA R&D Project

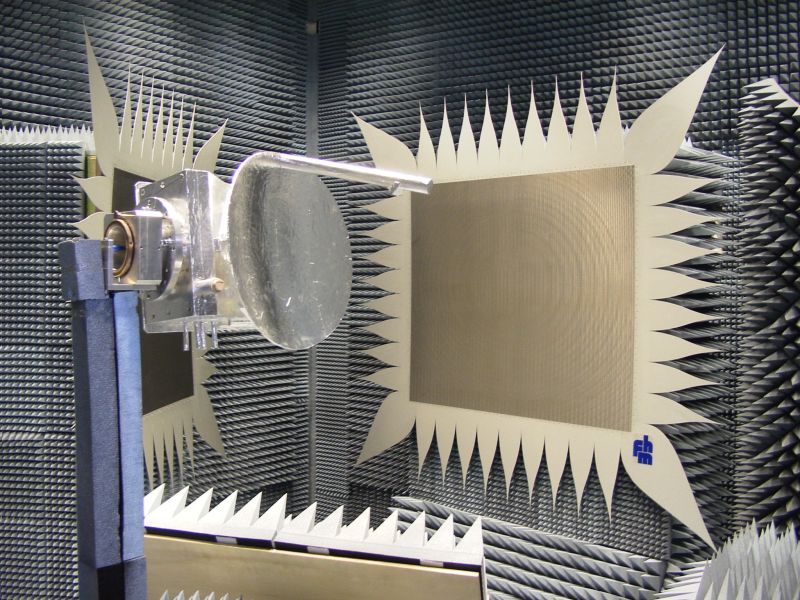

Figure 8: Measurement of Scaled Satellite Model at 14.5 GHz in CCR
For further improvement of the measurement accuracy of the compact range test facility, a versatile hardgating system has been developed in the laboratory for satellite communications. The hardgating system suppresses interfering signals while maintaining the real time test capability of the compact range test facility [7], [8], [15]. The system is normally used when high precision antenna radiation pattern measurements are carried out.
The plane wave quality of the quiet zone can be determined and analyzed in phase and amplitude with a laser controlled polar scanner, equipped with a linearly polarized probe. This high precision measurement tool has been developed in the laboratory in the frame of two diploma theses.

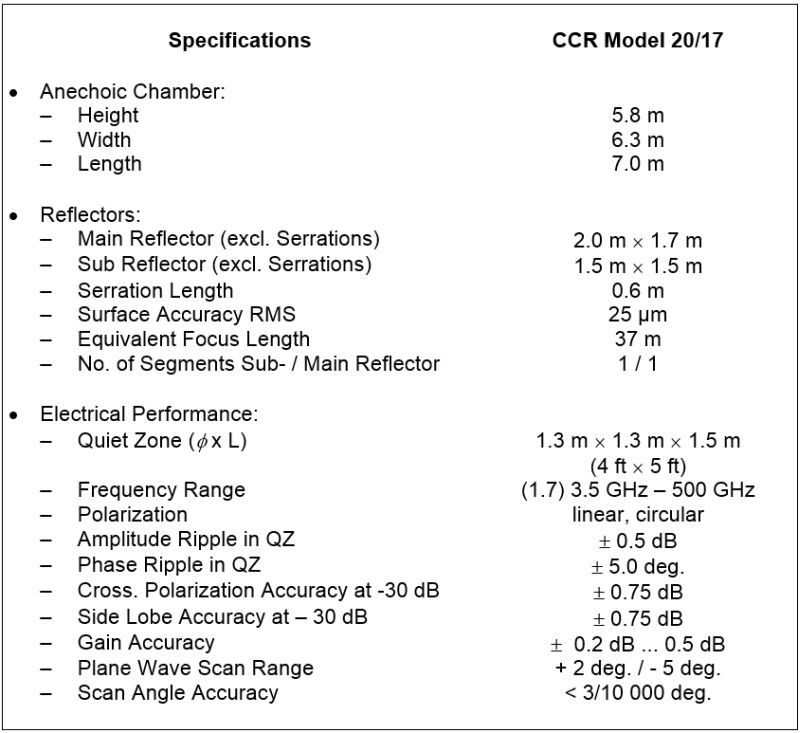

Table 1: Characteristic Data of Compensated Compact Range at HM
